Overview
This lecture maps the pathways that carry sensation from the face and scalp (up to the vertex) to the primary sensory cortex. Four cranial nerves (Trigeminal nerve V, Facial nerve VII, Glossopharyngeal nerve IX, and Vagus nerve X, with the cranial root of XI grouped with X) supply first-order sensory afferents, with the trigeminal nerve as the dominant carrier of discriminative sensation, pain/temperature/crude touch, and proprioception via its three divisions. These afferents synapse on second-order neurons within the sensory trigeminal nuclear complex (STNC), an elongated structure with three subnuclei organised by modality, running from midbrain to upper cervical cord. From there, the ventral trigeminothalamic tract (VTTT) carries the ascending signal to the thalamus and face cortex, forming the facial counterpart to the dorsal column-medial lemniscus pathway used by the rest of the body. A clinical point on herpes zoster of the trigeminal ganglion, and a final composite diagram, tie the afferent and central components together.
Nerves Carrying Facial and Scalp Sensation
- Three types of somatic sensory information are carried from the face: (i) discriminative sensation (light touch, vibration), (ii) pain & temperature, crude touch, (iii) proprioception. The Trigeminal nerve (V) is the main nerve involved.
- Four cranial nerves carry this sensation from the face/scalp to brainstem nuclei: Trigeminal (V), Facial (VII), Glossopharyngeal (IX), and Vagus (X) - the cranial root of XI (accessory) is grouped with X. Each nerve passes through its own sensory ganglion before entering the brainstem.
- First-order neuron cell bodies sit in these peripheral ganglia. Second-order neurons lie within the sensory trigeminal nuclear complex (STNC), an elongated column running from the midbrain down to the upper cervical spinal cord, onto which the first-order afferents of all four nerves synapse.
Trigeminal Nerve (V): Divisions and Distribution

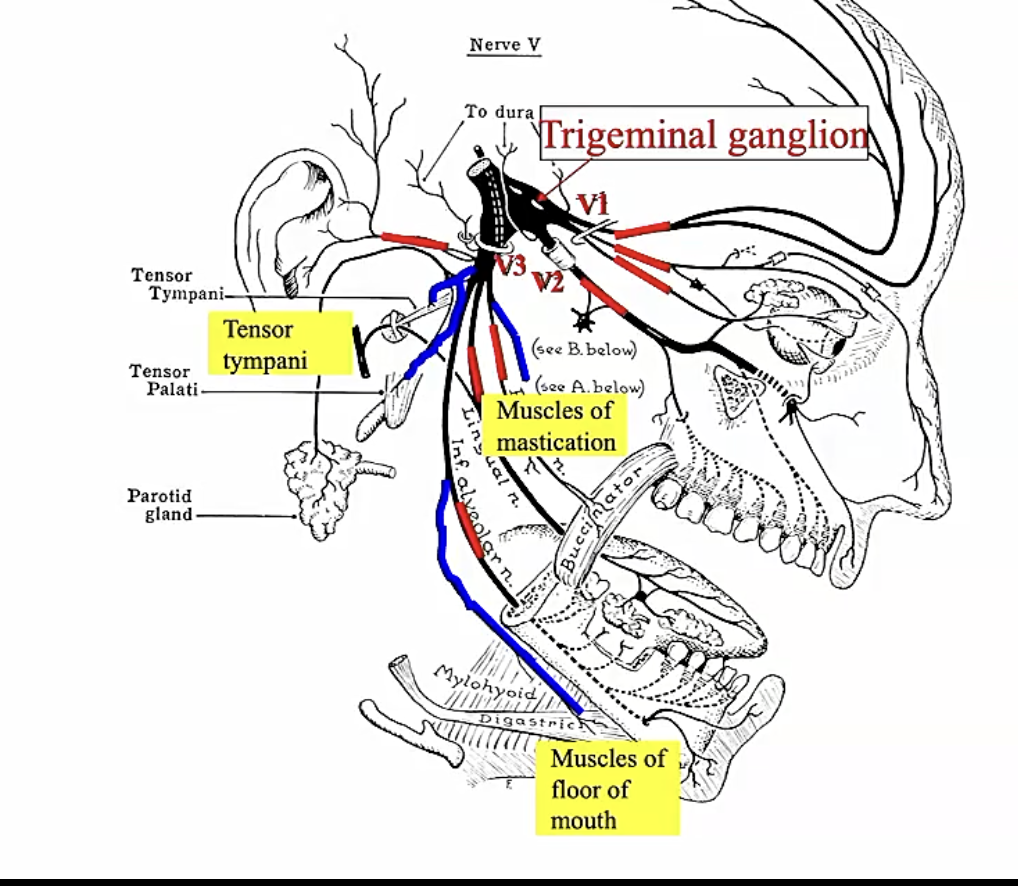

- The sensory root and motor root of V emerge separately. Sensory cell bodies sit in the trigeminal ganglion, from which three divisions arise: V1 ophthalmic (upper face), V2 maxillary (mid-face), V3 mandibular (lower face/jaw). A branch also runs to the dura.
- V3 alone carries the motor root as well as sensory fibres, supplying tensor tympani, tensor palati, the muscles of mastication, and the muscles of the floor of the mouth.
- Aside (motor, not sensory): the four muscles of mastication - masseter, temporalis, lateral pterygoid, medial pterygoid - are all innervated by the motor root of V3.
- Adjacent cutaneous zones shown alongside the trigeminal territory: C2, C3, and C4 dermatomes, a combined “C2/C3” zone behind the ear, and a zone over the ear labelled “X + VII” (vagus and facial nerve sensory contribution to the ear).
- The central route sketched for trigeminal sensation runs: face -> trigeminal ganglion -> pontine trigeminal nucleus -> tract of the trigeminal nerve -> medial lemniscus -> ventral posterior nucleus of the thalamus -> internal capsule -> sensory cortex (head region).
Herpes zoster of the trigeminal ganglion is inflammation of the ganglion affecting neurons that innervate one or more divisions of V, producing a dermatomal shingles rash following the affected division(s) - e.g. forehead/scalp/periorbital skin for V1, or lower face/jaw skin for V3.
Facial Nerve (VII) Sensation
- The facial nerve runs through the facial canal, a segment prone to inflammation.
- Course: internal acoustic meatus -> geniculate ganglion -> greater petrosal nerve (to the pterygopalatine ganglion and lacrimal gland); the nervus intermedius carries general sensory fibres. The chorda tympani carries taste plus secretomotor fibres to the submandibular/sublingual glands via the lingual nerve. After exiting the stylomastoid foramen, motor branches supply the muscles of facial expression (auricularis, occipitalis, platysma, stylohyoid, posterior digastric).
- Key teaching point: the general (somatic) sensory territory of VII is small - the concha, back of the ear, external acoustic meatus, and tympanic membrane - carried via the nervus intermedius.
- [The slide implies, without naming, that vulnerability of this facial-canal segment to inflammation is clinically relevant to conditions such as Bell’s palsy/Ramsay Hunt syndrome, but does not name them - slide does not elaborate further.]
Glossopharyngeal (IX) and Vagus (X) Nerve Sensation
- Glossopharyngeal nerve (IX): courses from the superior ganglion through the tympanic nerve to the otic ganglion/parotid gland (secretomotor), with pharyngeal, tonsillar, and lingual branches. Its somatic sensory territory is the posterior third of the tongue, the upper pharynx, the eustachian tube, and the middle ear.
- Vagus nerve (X), with the cranial root of XI grouped with it: its full course runs from the brainstem through auricular, pharyngeal, and laryngeal branches, then into the thorax (cardiac branches, lungs, heart) and abdomen (liver, stomach, spleen, pancreas, colon, kidney). For facial/head sensation, the relevant part is the auricular branch, which supplies the same ear area as VII, plus general sensory innervation of the lower pharynx and larynx.
Sensory Trigeminal Nuclear Complex (STNC): Subnuclei and Extent
Three subnuclei, rostral to caudal:
- Mesencephalic nucleus (continuous with the mesencephalic tract) - proprioception; most rostral, at midbrain level next to the periaqueductal grey, marking the rostral extent of the STNC.
- Chief/pontine (principal) nucleus - light touch, vibration; at pontine level, next to the motor nucleus of V.
- Nucleus of the spinal tract of V (spinal trigeminal nucleus) and its spinal trigeminal tract - extends through the medulla down to the third cervical segment. Its upper third carries light touch; its lower two-thirds carries pain and temperature (plus some light touch).
- All four cranial nerves (V, VII, IX, X+XI) enter the STNC at different rostrocaudal levels, each first descending ipsilaterally in the spinal trigeminal tract before synapsing on the nucleus.
- The caudal extent of the STNC is marked at the junction of the lower medulla and spinal cord, continuing further down into the cervical cord.
- At the C7 level, the nucleus of the spinal trigeminal tract merges with/becomes continuous with the substantia gelatinosa of the dorsal horn.
Central Ascending Pathway: Ventral Trigeminothalamic Tract (VTTT)
- Comparison baseline - the standard dorsal column-medial lemniscus pathway for the limbs/body: a first-order sensory neuron (dorsal root ganglion) ascends in the dorsal columns to the cuneate nucleus in the medulla, decussates, and ascends as the medial lemniscus through medulla, pons, and midbrain to the thalamus, then projects to the sensory cortex.
- Facial equivalent: the ventral trigeminothalamic tract (VTTT) ascends from the level of the STNC to the VPm (ventral posteromedial) nucleus of the thalamus, then to the face area of the cerebral cortex. It carries conscious proprioception; unconscious proprioception branches off separately to the cerebellum via the middle cerebellar peduncle (MCP).
- Mnemonic “HAL”: at the level of the medulla (sensory/internal arcuate decussation), the VTTT = ‘H’, and the medial lemniscus = ‘A’ (arcuate fibres, from the cuneate nucleus) plus ‘L’ (from the gracile nucleus); H sits dorsal to/above AL.
- The relative position of VTTT and medial lemniscus changes with level: at the pons the arrangement is “LAH” (left to right: L, A, H); at the medulla it is arranged vertically as H, A, L - i.e. the VTTT rotates position relative to the medial lemniscus as it ascends through the brainstem.
Summary Integration
The lecture’s final diagram consolidates the whole afferent pathway in one dorsal-view brainstem schematic: the trigeminal ganglion and motor root give rise to sensory fibres that descend as the spinal trigeminal tract to the spinal trigeminal nucleus (extending from pons down to the third cervical segment); the pontine (chief) trigeminal nucleus and mesencephalic nucleus sit more rostrally; and the ventral trigeminothalamic fibres ascend from all levels of the nuclear complex, up through the brainstem toward the thalamus.
Self-test
- List the three types of somatic sensory information carried from the face, and name the nerve mainly responsible.
- List the four cranial nerves that carry sensation from the face and scalp to the brainstem nuclei, and state how the cranial root of XI is classified among them.
- Where do the second-order neurons in this system lie, and what is the rostrocaudal extent of that structure?
- Name the three divisions of the trigeminal nerve and the facial region each supplies.
- Which division of the trigeminal nerve carries the motor root, and which muscles/structures does it supply?
- Describe the central route from the face to the cortex sketched for trigeminal sensation, from ganglion to cortex.
- Explain the clinical presentation of herpes zoster affecting the trigeminal ganglion.
- Describe the course of the facial nerve’s general sensory fibres, and state the small area of skin this component supplies.
- Distinguish the somatic sensory territory of the glossopharyngeal nerve from that of the vagus nerve.
- List the three subnuclei of the sensory trigeminal nuclear complex from rostral to caudal, with the modality each carries.
- Describe what happens to the nucleus of the spinal trigeminal tract at cervical levels.
- Distinguish how light touch and pain/temperature are represented within the nucleus of the spinal trigeminal tract.
- Describe the standard dorsal column-medial lemniscus pathway used for sensation from the limbs and body.
- Describe the course of the ventral trigeminothalamic tract (VTTT), from its origin to the cortex, including the fate of the unconscious proprioceptive component.
- Using the “HAL” mnemonic, describe the relative position of the VTTT and medial lemniscus at the level of the medulla, and how this arrangement changes at the level of the pons.
- Integrative: a patient loses cutaneous sensation over the concha and back of the ear. Which nerves’ territories overlap in this region, and why might more than one need to be considered?
- Integrative: trace the pathway of a pain signal from a pinprick on the lower face to the sensory cortex, naming the first-order ganglion, the second-order nucleus and its relevant subregion, the ascending tract, and the thalamic relay.
Answers
Reveal answers
- Discriminative sensation (light touch, vibration), pain & temperature/crude touch, and proprioception; the trigeminal nerve (V) is the main nerve involved.
- Trigeminal (V), Facial (VII), Glossopharyngeal (IX), and Vagus (X); the cranial root of XI is grouped with the vagus (X).
- Second-order neurons lie within the sensory trigeminal nuclear complex (STNC), which runs from the midbrain down to the upper cervical spinal cord.
- V1 ophthalmic (upper face), V2 maxillary (mid-face), V3 mandibular (lower face/jaw).
- V3 (mandibular division) carries the motor root; it supplies tensor tympani, tensor palati, the muscles of mastication (masseter, temporalis, lateral and medial pterygoid), and the muscles of the floor of the mouth.
- Face -> trigeminal ganglion -> pontine trigeminal nucleus -> tract of the trigeminal nerve -> medial lemniscus -> ventral posterior nucleus of the thalamus -> internal capsule -> sensory cortex.
- It is inflammation of the trigeminal ganglion affecting neurons of one or more divisions of V, producing a dermatomal shingles rash following the affected division(s) (e.g. forehead/periorbital for V1, lower face/jaw for V3).
- Internal acoustic meatus -> geniculate ganglion -> nervus intermedius carrying general sensory fibres; this component supplies the concha, back of the ear, external acoustic meatus, and tympanic membrane.
- Glossopharyngeal (IX) supplies the posterior third of the tongue, upper pharynx, eustachian tube, and middle ear. Vagus (X) supplies (via its auricular branch) the same ear area as VII, plus the lower pharynx and larynx.
- Mesencephalic nucleus (proprioception, most rostral) -> chief/pontine nucleus (light touch, vibration) -> nucleus of the spinal tract of V (upper third light touch, lower two-thirds pain & temperature, extending to the third cervical segment).
- It merges with/becomes continuous with the substantia gelatinosa of the dorsal horn at cervical levels (shown at C7).
- The upper third of the nucleus/spinal tract of V carries light touch (plus some in the lower part too); the lower two-thirds carries pain and temperature.
- First-order neuron from the dorsal root ganglion ascends in the dorsal columns to the cuneate nucleus in the medulla, decussates, ascends as the medial lemniscus through medulla/pons/midbrain to the thalamus, then projects to the sensory cortex.
- The VTTT ascends from the level of the STNC to the VPm nucleus of the thalamus, then to the face area of cerebral cortex; the unconscious proprioceptive component branches off separately to the cerebellum via the middle cerebellar peduncle.
- At the medulla, VTTT (H) sits dorsal to the medial lemniscus (A, from cuneate nucleus, and L, from gracile nucleus), arranged vertically as H, A, L. At the pons, the arrangement changes to left-to-right L, A, H - the VTTT rotates position relative to the medial lemniscus as it ascends.
- Both the facial nerve (VII, via the nervus intermedius) and the vagus nerve (X, via its auricular branch) supply overlapping general sensory territory in this same ear region, so a lesion here could implicate either nerve.
- Trigeminal ganglion (first-order cell bodies) -> lower two-thirds of the nucleus of the spinal tract of V (pain/temperature region) -> spinal trigeminal tract -> decussates and ascends as the ventral trigeminothalamic tract -> VPm nucleus of the thalamus -> face area of sensory cortex.
